UNICA 400 DIGIT 3 AXES / CARRIAGE 3200MM
UNICA 400 DIGIT 3 AXES / CARRIAGE 3200MM
925164
Producent:
Griggio
Specyfikacja produktu
Gwarancja:
12
Realizacja:
7

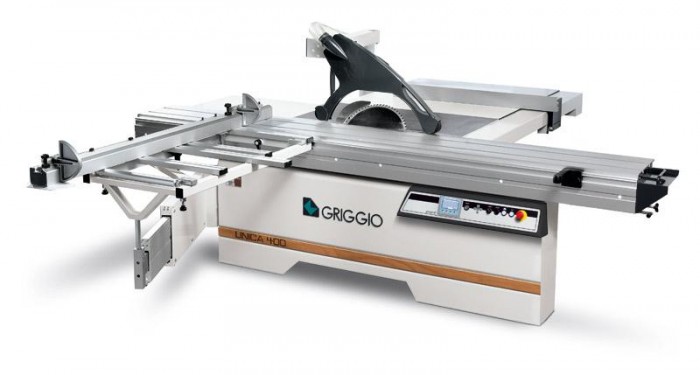

UNICA 400 DIGIT 3 AXES / CARRIAGE 3200MM
Panel saw with tilting blade
* Direct start
* 2 axes scroing unit with ON-OFF motorized adjustment
* Electronic programmer with touch screen 4" - PLC SIEMENS
for lifting and tilting of the blade and
moving the rip fence complete with:
- Programming of blade height and tilt with automatic
correction of the height in relation to tilting movement
- Programming of the rip fence position with automatic
compensation of the height with tilted blade
- Rip fence unit hiding completely under the working table
- Rip fence sliding on hardened and and ground bar with
guide sliding support with re-circulating ball screw
- Automatic calculation of upper and lower height
of the panel to cut
- Possibility to memorize up to 500 working values
- Calculation of the tilting angle of the fence
of the cross cut carriage
- Display of the blade rotation speed
Technical data:
- Sliding table sizes:
- UNICA 400/2150
385X2150 mm.
- UNICA 400/2600
385x2600 mm.
- UNICA 400/3200
385x3200 mm.
- UNICA 400/3800
385x3800 mm.
- UNICA 400/4300
385x4300 mm.
- Cross-cut capacity sliding table 2150
2170 mm.
- Cross-cut capacity sliding table 2600
2700 mm.
- Cross-cut capacity sliding table 3200
3260 mm.
- Cross-cut capacity sliding table 3800
3870 mm.
- Cross-cut capacity sliding table 4300
4370 mm.
- Main blade dia. (standard)
400 mm.
- 3 rotation speeds
3000-4000-5000 r.p.m.
- Cut height at 90°
130 mm.
- Cut height at 45°
90 mm.
- Blade tilt (UNICA 400-400E-DIGIT 1)
0°-46°
- Blade tilt (DIGIT 2-DIGIT 3-PROGRAM)
+1°-46°
- Scoring blade dia.
125 mm.
- Cut width between blade and rip fence
1250 mm
(UNICA 400-400E-400 DIGIT 2)
- Cut width between blade and rip fence
1600MM
(DIGIT 1-DIGIT 3-PROGRAM)
On request all models can be supplied
with cut width
1050 - 1300 mmmm.
- 2 suction hoods dia.
80 - 120 mm.
- Motor power
7,5 hp (5,5 kw)
- Scoring unit motor power
1 hp (0,75 kw)
- Net weight UNICA 400
820 kg.
- Net weight UNICA 400 DIGIT
950 kg.
- Net weight UNICA 400 PROGRAM
1120 kg.
The machines are equipped with:
- Aluminium carriage sliding on high precision
steel bars
- Anodized carriage and profiles
- Speed change of the blade from the table
- Rip fence with micrometric adjustment
- Table extension
- Cross cut fence positioning with compensation of
the height in relation to the tilting angle
(UNICA 400E-DIGIT-PROGRAM)
- Quick selection of 5 fix positions of the flip over stop
of the cross cut fence
- Parallelogram saw blade safety guard
- Blade unit lifting movement through linear actuator
- Blade unit tilting movement through linear actuator
(UNICA 400E-DIGIT-PROGRAM)
- Lifting unit of the blade sliding on high precision
linear guides
- 'CE' standards
DELIVERY: OCTOBER 2009
