UNICA 400 DIGIT 2 AXES / CARRIAGE 3200MM
925163

Griggio

Specyfikacja produktu

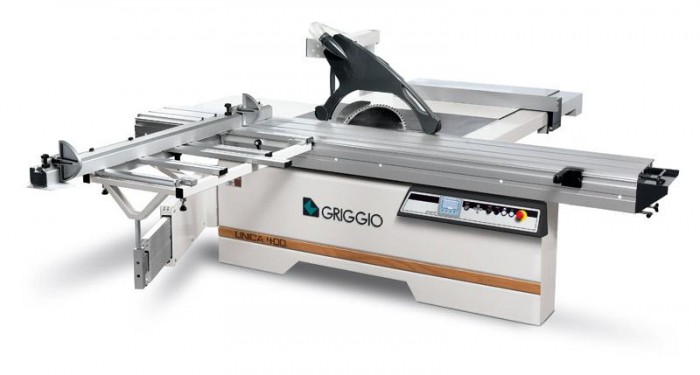

UNICA 400 DIGIT 2 AXES / CARRIAGE 3200MM
Panel saw with tilting blade
* Direct start
* 2 axes scoring unit with ON-OFF motorized adjustment
- Electronic programmer with touch screen 4" - PLC SIEMENS
for lifting and tilting of the blade, complete with:
- Programming of blade height and tilt with automatic
correction of the height in relation to tilting movement
- Possibility to memorize up to 500 working values
- Calculation of the tilting angle of the fence
of the cross cut carriage
- Display of the blade rotation speed























Technical data:
- Sliding table sizes:
- UNICA 400/2150 385X2150 mm.
- UNICA 400/2600 385x2600 mm.
- UNICA 400/3200 385x3200 mm.
- UNICA 400/3800 385x3800 mm.
- UNICA 400/4300 385x4300 mm.
- Cross-cut capacity sliding table 2150 2170 mm.
- Cross-cut capacity sliding table 2600 2700 mm.
- Cross-cut capacity sliding table 3200 3260 mm.
- Cross-cut capacity sliding table 3800 3870 mm.
- Cross-cut capacity sliding table 4300 4370 mm.
- Main blade dia. (standard) 400 mm.

The machines are equipped with:
- Aluminium carriage sliding on high precision
steel bars
- Anodized carriage and profiles
- Speed change of the blade from the table
- Rip fence with micrometric adjustment
- Table extension
- Cross cut fence positioning with compensation of
the height in relation to the tilting angle
(UNICA 400E-DIGIT-PROGRAM)
- Quick selection of 5 fix positions of the flip over stop
of the cross cut fence
- Parallelogram saw blade safety guard
- Blade unit lifting movement through linear actuator
- Blade unit tilting movement through linear actuator
(UNICA 400E-DIGIT-PROGRAM)
- Lifting unit of the blade sliding on high precision
linear guides
- 'CE' standards
DELIVERY: OCTOBER 2009
