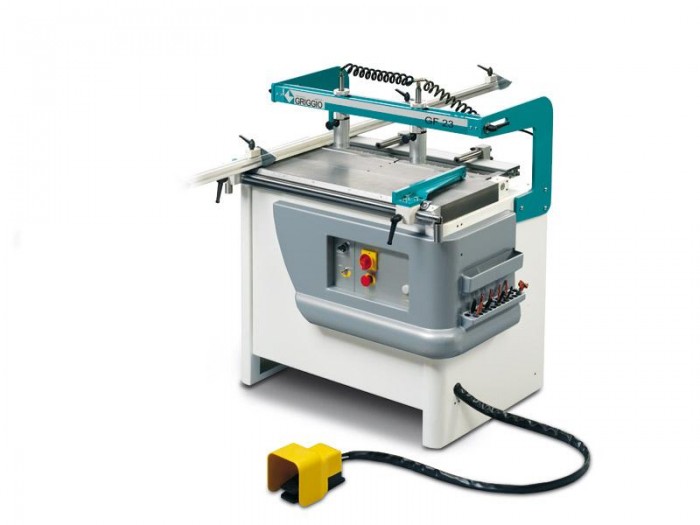

Griggio GF 35 BORING MACHINE WITH 35 CHUCKS id:4750

Specyfikacja produktu

GF 35 BORING MACHINE WITH 35 CHUCKS
With penumatic tilt of the head

Technical data:
- Number of spindles 35 n°
- Center distance between 2 spindles 32 mm.
- Center distance between outer spindles 1088 mm.
- Max. drilling depth 85 mm.
- Max. thickness of the piece 90 mm.
- Motor power 2 hp (1,5 kw)
- Net weight 420 kg.
The machines are equipped with:
- 3000 mm. aluminium fence complete with 4 stops
- Side overturnable fences on the table (GF 23-27-35)
- 2 self-levelling pneumatic hold-down clamps (GF 21-23-27)
- 4 self-levelling pneumatic hold-down clamps (GF 35)
- 2 front vertical stops for vertical-horizontal
drilling coupling
- 0°-90° pneumatic head tilt with locking in
any position and reference stop at 45°
- 'Quick depth' device for adjustment and
direct reading of boring depth
- Digital thicknessing read-out of the piece
- Quick fitting chucks
- No. 5 bit brackets
- Bit bracket support (GF 23-27-35)
- 'CE' standards
