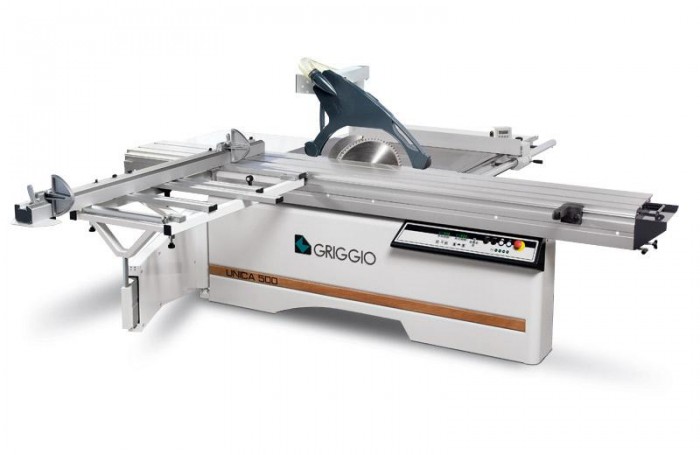

Griggio UNICA 500E PANEL SAW/ SLIDING TABLE 3200 id:4715

Specyfikacja produktu

UNICA 500E PANEL SAW/ SLIDING TABLE 3200
Panel saw with tilting blade
* 2 axes scoring unit with ON-OFF motorized adjustment
* Motorized lifting movement of the blade
* Motorized tilting movement of the blade
* Electronic digital read-out of blade lifting
* Electronic digital read-out of blade tilting
* Direct start

Technical data:
- Sliding table sizes:
- UNICA 500/2150 385X2150 mm.
- UNICA 500/2600 385x2600 mm.
- UNICA 500/3200 385x3200 mm.
- UNICA 500/3800 385x3800 mm.
- UNICA 500/4300 385x4300 mm.
- Cross-cut capacity sliding table 2150 2170 mm.
- Cross-cut capacity sliding table 2600 2700 mm.
- Cross-cut capacity sliding table 3200 3260 mm.
- Cross-cut capacity sliding table 3800 3870 mm.
- Cross-cut capacity sliding table 4300 4370 mm.

- Main blade dia. (standard) 450 mm.
- Cut height at 90° 155 mm.
- Cut height at 45° 105 mm.

- Main blade dia. (on request) 500 mm.
- Cut height at 90° 180 mm.
- Cut height at 45° 122 mm.

- 4 rotation speed 3000-4000-5000-6000 r.p.m.
- Blade tilt (UNICA 500 - UNICA 500E) 0°-46°
- Blade tilt (DIGIT 2 - DIGIT 3 - PROGRAM) +1°-46°
- Scoring blade dia. 125 mm.
- Cut width between blade and rip fence 1250 mm.
(UNICA 500 - UNICA 500E - DIGIT 2)
- Cut width between blade and rip fence 1600 mm.
(DIGIT 1-DIGIT 3-PROGRAM)
On request all models can be supplied with
with rip fence with opening 1050 - 1300 mm.
- 2 suction hoods dia. 80 - 120 mm.
- Motor power 7,5 hp (5,5 kw)

The machines are equipped with:
- 2 axes scoring unit with motorized adjustment on-off
- Aluminium carriage sliding on high precision
ground steel bars
- Anodized carriage and profiles
- Aluminium fence +30°-45°
- Increased extensible fence on cross-cut carriage
with lever locking of the flip over stops and
read-out with LED
- Rip fence with micrometric adjustment
- Blade speed change from the table
- Table extension
- Parallelogram saw blade safety guard
- Positioning of the fence of the cross-cut carriage
with compensation of the height in relation to
the tilting angle
- Quick selection of 5 fixed positions of
the flip over stop on the cross cut fence
- Blade unit tilt through linear actuator
- Blade lifting unit sliding on 2 linear precision guides
- Central lubrication of the lifting unit
- Blade unit with double separate suction for main
and scoring blade
- - 'CE' standards
