UNICA 400 PROGRAM 3 AXES - VIDEO 5,7'
925165

Griggio

Specyfikacja produktu

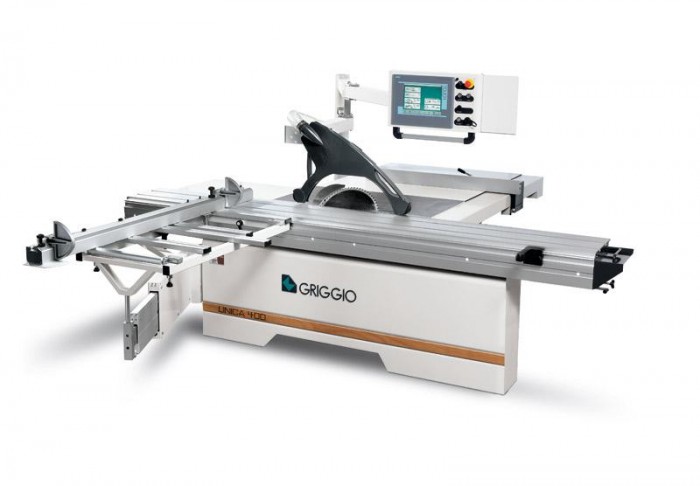

UNICA 400 PROGRAM 3 AXES - VIDEO 5,7''
Panel saw with tilting blade and sliding table 3200 mm
* 2 axes scoring unit with motorized adjustment ON-OFF
* TOUCH SCREEN electronic programmer with
graphic video 5,7" SIEMENS "SIMATIC TP 177 A"
- Programming of the rip fence
- Programming of the blade lifting
- Programming of the blade tilt
- Electronic display of the scoring unit
- Automatic star-delta start

PROGRAM machines are complete with:
- Programming of rip fence position with automatic
compensation of the size with blade tilt
- Automatic calculation of the upper and lower height
of the panel to cut
- Rip fence driven by re-circulating ball screw and
precision linear guide.
Translation speed max. 15 m/1'
- Programming of blade lifting in relation to the
thickness of the panel to be cut and blade tilting
- Blade tilting programming
- Automatic calculation of the position value of the flip
over stop on extensible fence of the cross-cut carriage
the result is the upper and lower value of the panel to be
cut and the compensation of the value with blade tilt.
- Possibility to memorize up to 650 working programs
on 3 axes
- Programming of max. 10 sequential values of the three axis
with each program
- Calculation of the tilting angle of the fence
of the cross cut carriage
- Program for blade and speed change
- Automatic display of data and alarm messages
- Adjustable hanging panel board
- Rip fence unit hiding completely under the working table
Technical data:
- Sliding table sizes:
- UNICA 400/2150 385X2150 mm.
- UNICA 400/2600 385x2600 mm.
- UNICA 400/3200 385x3200 mm.
- UNICA 400/3800 385x3800 mm.
- UNICA 400/4300 385x4300 mm.
- Cross-cut capacity sliding table 2150 2170 mm.

The machines are equipped with:
- Aluminium carriage sliding on high precision
steel bars
- Anodized carriage and profiles
- Speed change of the blade from the table
- Rip fence with micrometric adjustment
- Table extension
- Cross cut fence positioning with compensation of
the height in relation to the tilting angle
(UNICA 400E-DIGIT-PROGRAM)
- Quick selection of 5 fix positions of the flip over stop
of the cross cut fence
- Parallelogram saw blade safety guard
- Blade unit lifting movement through linear actuator
- Blade unit tilting movement through linear actuator
(UNICA 400E-DIGIT-PROGRAM)
- Lifting unit of the blade sliding on high precision
linear guides
- 'CE' standards
DELIVERY: OCTOBER 2009
